Chapter 1. Basics

1.3 SNAT

Learning Objectives

  • Configure Source NAT (SNAT)

Prerequisites:

  • Security policy for Inside to Outside
  • Interface configuration
  • Knowledge of previous labs
Scenario: Source NAT is what your router does on a daily basis to provide you with Internet access just so you can go on social media and complain about how slow your internet is. Your router at home does this all automatically for you. But since we’re real network engineers with a firewall on one hand, and determination on the other. Let’s learn how to configure this all by ourselves using Palo Alto! We’ve already configured this in the previous chapter, so let’s just go over it again!
Main Scenario

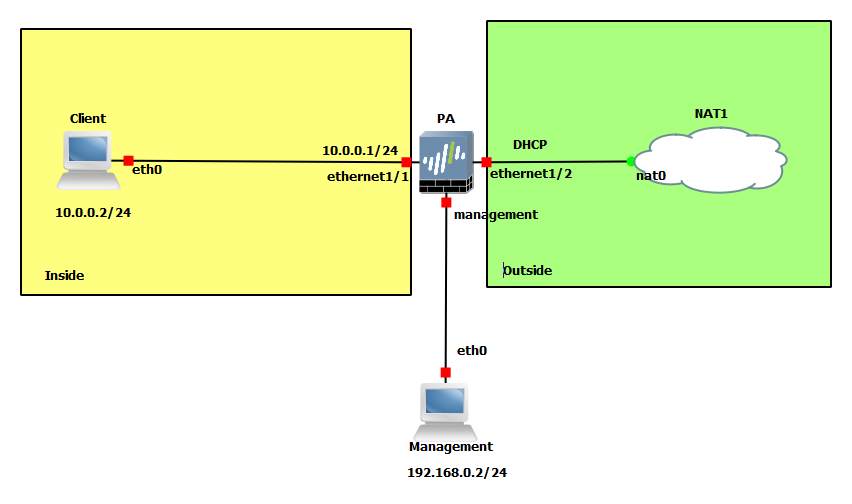

Figure 1.49: Main Scenario
Table 1.4: Addressing Table
Device Configuration
Clint eth0: 10.0.0.2/24 GW: 10.0.0.1 DNS: 8.8.8.8
PaloAlto Ethernet1/1: 10.0.0.1/24
Ethernet1/2: DHCP
Management: 192.168.0.1/24
Management (WebTerm) eth0: 192.168.0.2/24
Outside (WebTerm) eth0: DHCP
Table 1.5: Zone Configuration
Zone Interface
Inside Ethernet1/1
Outside Ethernet1/2

SNAT (Source NAT: Access the Internet in Palo Alto)

Under the policies tab, go to NAT, then click Add.

Set a Source NAT
Figure 1.50: Set a Source NAT

We want to translate packets originating from the Inside to go to the outside zone using the interface address of ethernet1/2. This would be Port Address Translation Overload. Under the General tab, just change the name.

Set a Name for NAT
Figure 1.51: Set a Name for NAT

Under the original packet tab, click add then make the source zone inside. As for the destination zone, make it outside.

Set a Source Zone and Destination Zone for NAT
Figure 1.52: Set a Source Zone and Destination Zone for NAT

Configure these settings under the translated packet tab in the source address translation area:

Table 1.6: SNAT Configuration
Parameter Value
Translation Type Dynamic IP and Port
Address Type Interface Address
Interface Ethernet1/2
IP Address None
Set a Translated Packet
Figure 1.53: Set a Translated Packet

Don’t forget to commit!

Check Internet Connectivity on Webterm

Open up webterm, and navigate to any website of your choosing.

Verify your connectivity to the Internet
Figure 1.54: Verify your connectivity to the Internet

If your desired webpage showed up, you have successfully configured SNAT!
