Chapter 2. Security Tuneup

2.5 SubInterfaces and Vlans

Learning Objectives

  • Identify sub interface in Palo Alto
  • Configure sub Interfaces
  • Separate the traffic in different Vlans
Figure 2.60: Main scenario



Table 2.14: IP Addresses list
Device Configuration
Palo Alto Ethernet 1/1: DHCP Client – Type: Layer3

Ethernet 1/2: – Type: Layer3

Management: 192.168.1.1/24– Type: Layer3
WebTerm1-Management 192.168.1.2/24
WebTerm2-Vlan6 IPV4: 10.6.6.25/24   GW: 10.6.6.1  DNS: 8.8.8.8
WebTerm3-Vlan10 IPV4: 10.10.10.28/24   GW: 10.10.10.1  DNS: 8.8.8.8

To Add subinterfaces, first select Ethernet 1/ 2 as a Layer 3 and then select Ethernet1/ 2> Add Subinterface:

Table 2.15: SubInterfaces
InterfaceName Tag Virtual Router Security Zone IPV4
Ethernet1/2 – Default – –
Ethernet 1 /2.6 6 Default Guest 10.6.6.1/24
Ethernet 1/2.10 10 Default Secure 10.10.10.1/24
Figure 2.61: Sub-interfaces



Table 2.16: Zones
Parameters Value
Guest Ethernet 1 /2.6
Secure Ethernet 1/2.10
Outside Ethernet 1/1



Right click on the Switch> Configure, delete all interfaces except eth0,eth1 and eth 2 and configure the interfaces as below:

Table 2.17: Switch ports list
Port Vlan Type
0 1 Dot1q
1 6 Access
2 10 Access

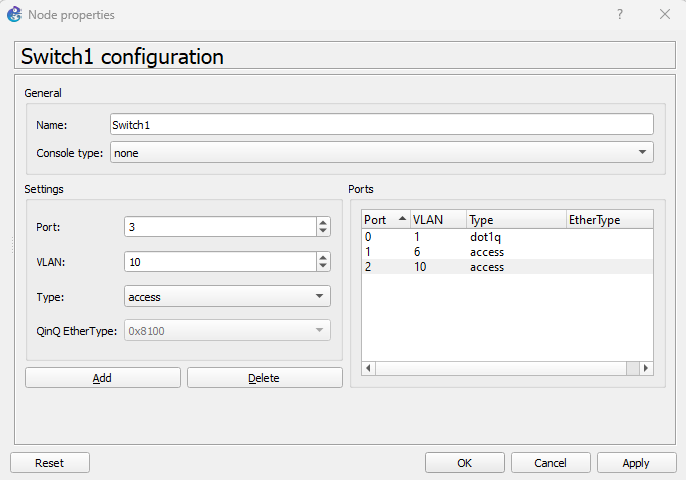

Figure 2.62: Switch configuration

1. In Palo Alto, create a default route 0.0.0.0 0.0.0.0 [Default Gateway]

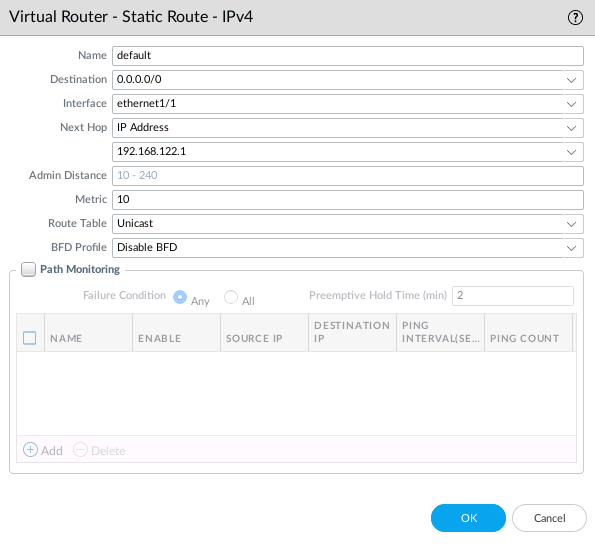

Figure 2.63: static route

2. Create a Source NAT from Guest to Outside.

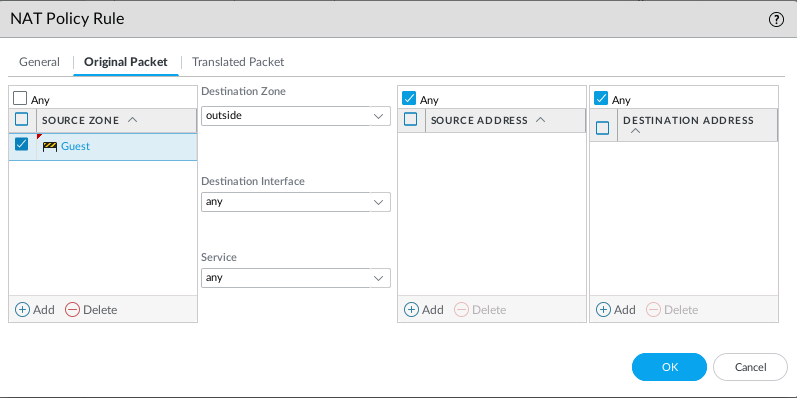

Figure 2.64: Source NAT- From Guest to outside

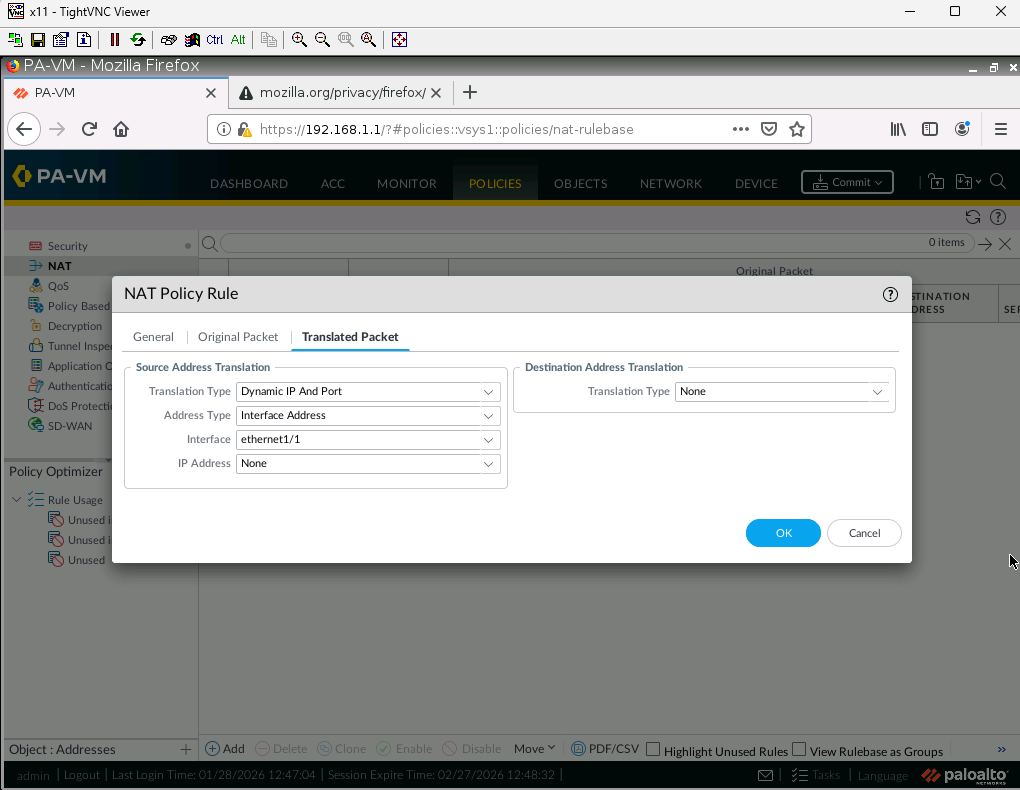

Figure 2.65: Source NAT- setting Translated IP

3. Create a Policy from Guest to Outside. Only DNS, Web-browsing, dns-over-https and SSL applications should be allowed.

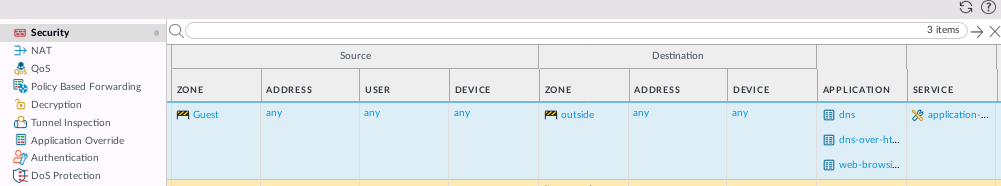

Figure 2.66: Set a policy from Guest to Outside

4. Verify your configuration in Vlan 6. You shouldn’t be able to ping 8.8.8.8. You should be able to reach Talebi.ca.

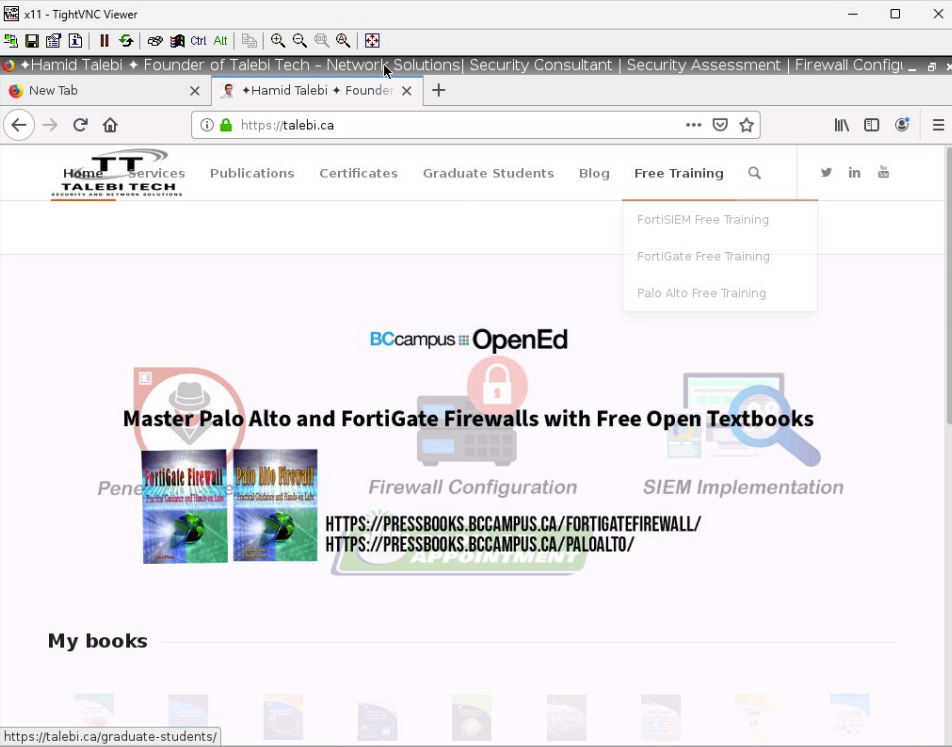

Figure 2.67: Verify configuration

5. Create a Source NAT from Secure to Outside

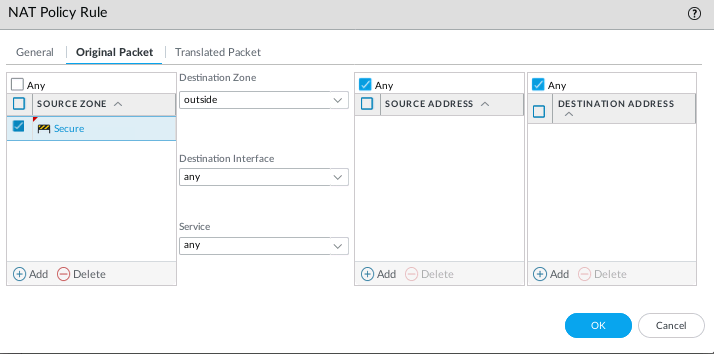

Figure 2.68: Source NAT- Secure to outside zone

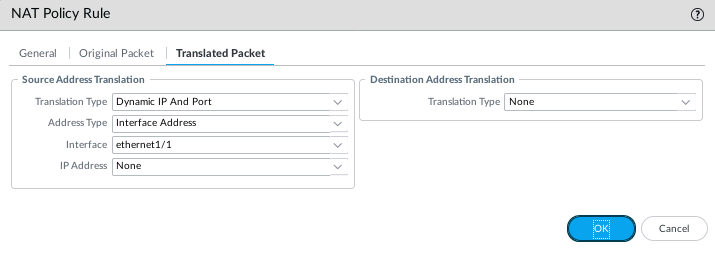

Figure 2.69: Source NAT- Translated IP packet

6. Create a Policy from Secure to Outside. Only Ping,DNS, YouTube, Goolge-base applications should be allowed.

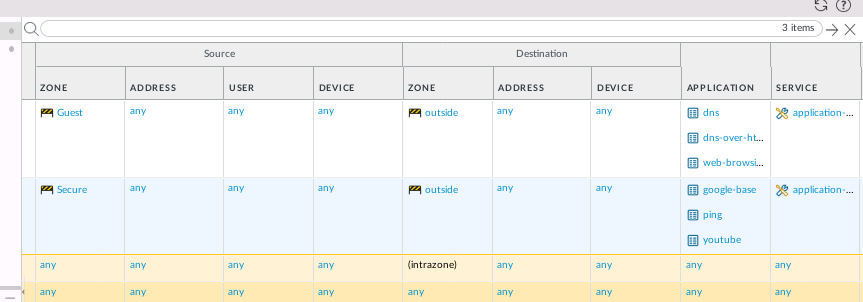

Figure 2.70: Create a policy from Secure to outside zone

7. Verify your configuration in Vlan 10. You should be able to ping 8.8.8.8. You should be able to reach YouTube.com

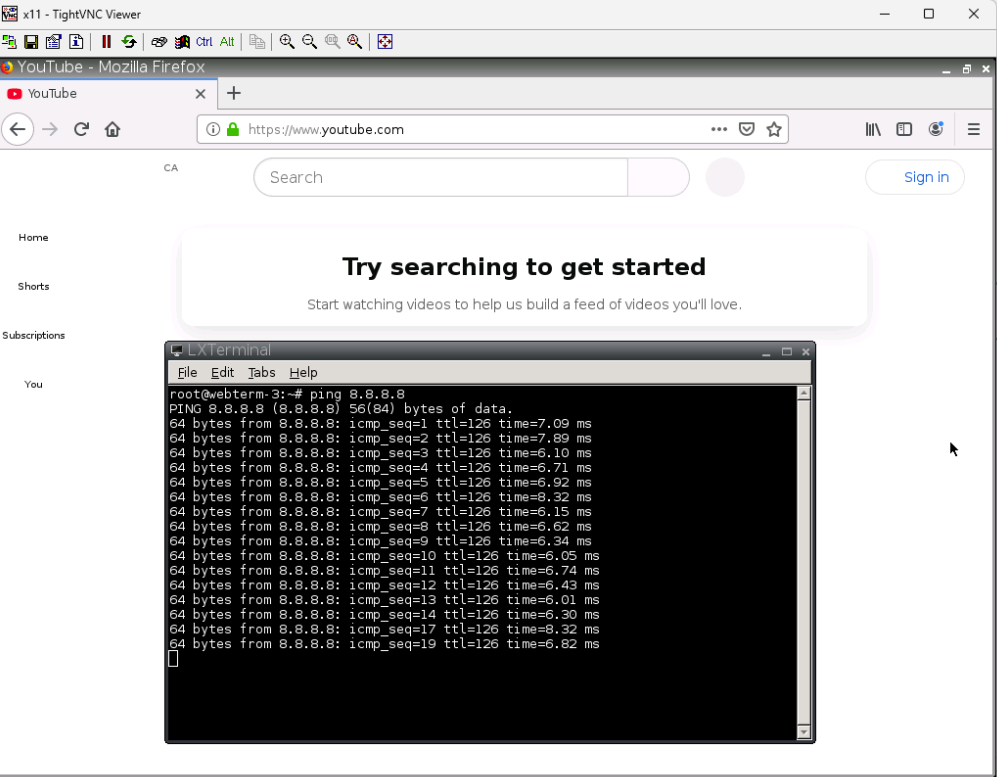

Figure 2.71: Verify configuration
